Fin

  • Products paramete

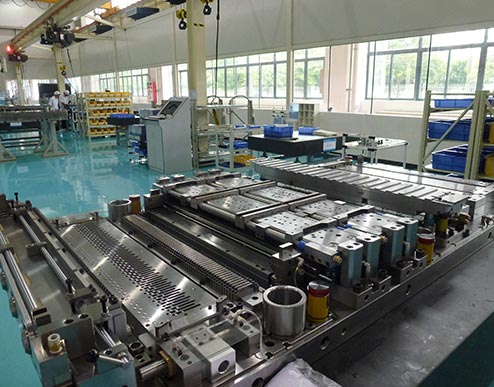

    Mold name:F14007 Mold material:Hydrophilic aluminum foil Mold dimension:1700.0X1000.0X280.0 Product dimension:D9.52 X 25.4 X 2.6 Tonnage::3.2T

  • Mold Features

    Very thin thickness with 0.015. 2. High precision require with 0.03. 3. High distance between each slice, height reach to 2.6mm.

  • Application area

    Air conditioning

Online consulting

Mold custom Hotline:+86-756-8522009

Data

  • mold name

    Precison sheet metal-precision fin die

  • lead time

    65

  • Cavity no.

    13 processes

  • cycle time(S)

    230 shots/ mins

  • Max. tonnage

    5.0T

  • View mold

    More

Features

Precise Stamping Die

1.Higt requeset of the mold presicion; the precision of shape & position need to be within 0.005

2. continuous production with high speed of 250 shot/ min

mass production is possible, which can be reach 78 sampls from one cavity

My demand is similar to that of this project.>>
  • Precise Stamping DieApplication
  • Precise Stamping DieApplication
  • Precise Stamping DieApplication

Advantages

Top-level R&D Team

30 years experience in mold design, taking 30% share in the whole company. To provide optimized product solution, shortening the development cycle and coming into the market time.

Advanced Processing Equipments

GDM Owns Full ranged imported Japanese high precision processing equipments. The accuracy for Makino CNC and EDM processing can reach ±0.01MM, and ±0.003MM for Mitsubishi WEDM.

Perfect Quality Assurance

For steps quality control during the manufacturing make assure the perfect quality: IQC, IPQC, FQC, OQC.

Ultra Short Delivery Time

To carry out all processes and all staffs’ delivery schedule management, which is useful to save the manufacturing time and coming into the market time, winning more benefit for customers.

Information Automation Management

To use ERP, OA, PDM and MES automation systems, which make production management automatically, programmatically and intelligentizedly.
